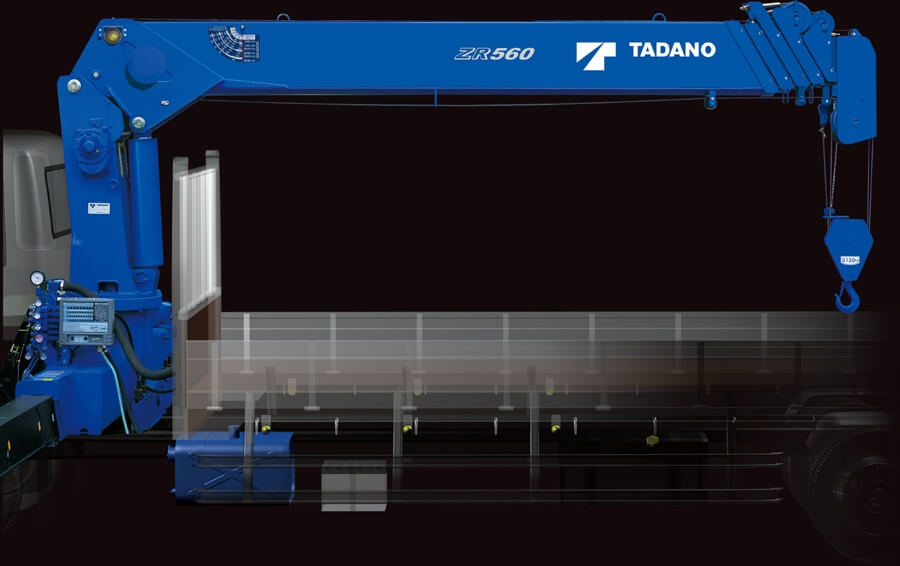

TM-ZR560 Series

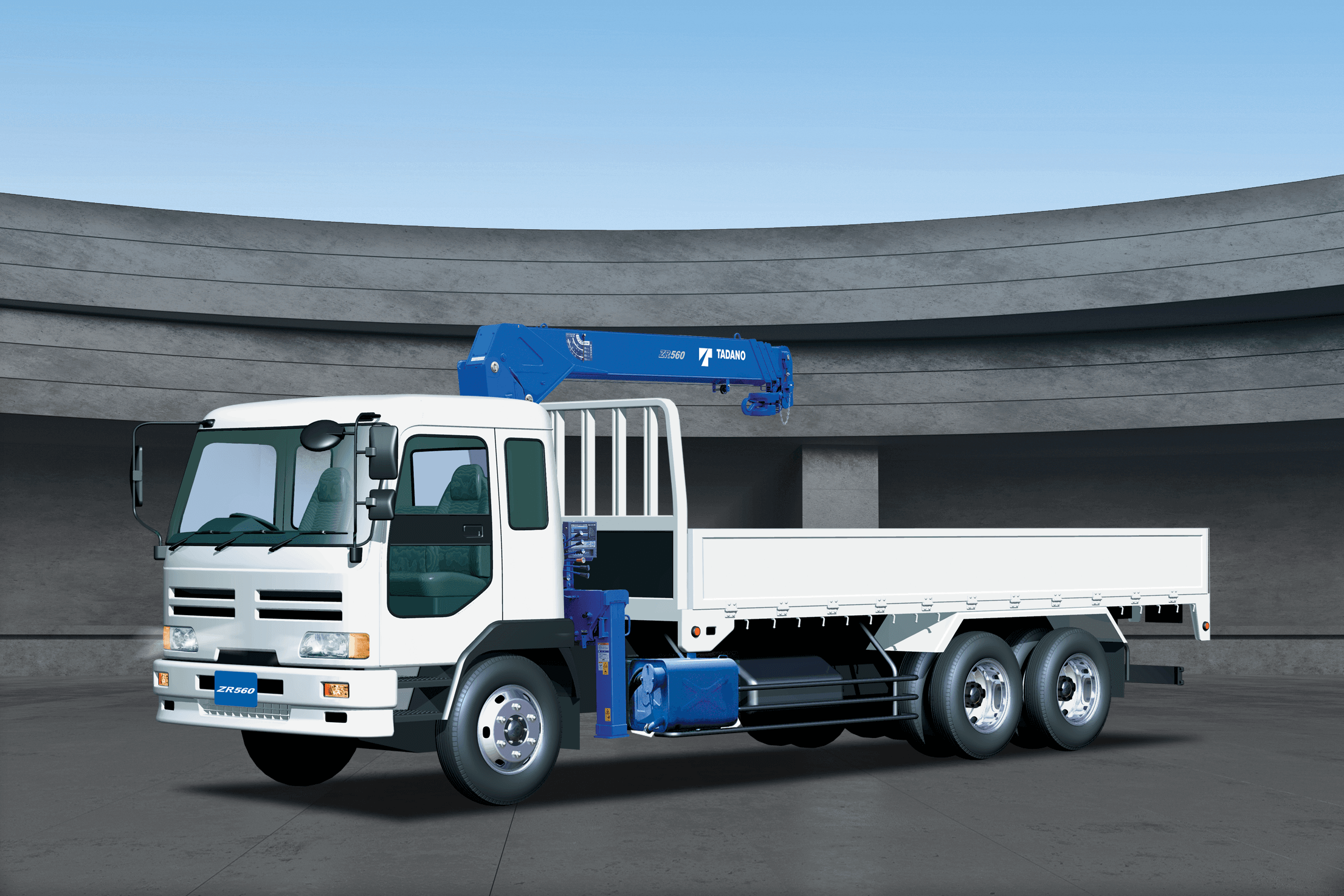

Tadano’s TM-ZR560 Series are made specifically to suit medium-large 12-25 tonne vehicles. With a range of boom lengths to choose from, world class technology, unique heptagonal booms and central control panels with AML, the 560 series are a strong and efficient vehicle loader crane for your transportation, rail work, recycling and salvage or drilling project needs..
Features Include:
- Tadano’s Equalizer Crane Support – Three Point Support System.
- Working Height Limiter
- AML system
- Centralized Control Panel
- Radio Controller
- Interlocking Jack System
- Full circle swing and automatic slew lock.

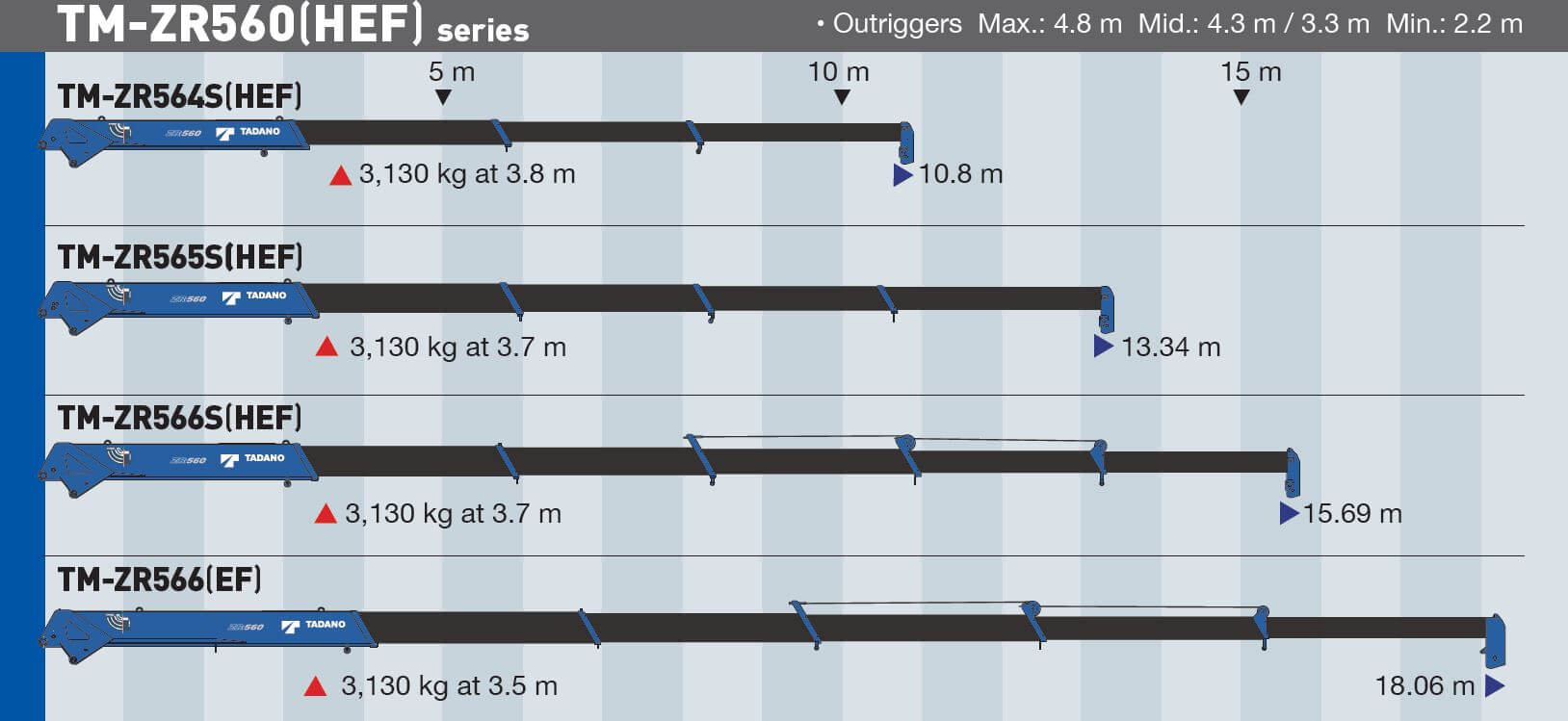

- Max. Lifting Capacity: 3,130kg x 3.8m
- Section: 4
- Max. Hook Height: 12.7m
- Max. Load Radius: 10.58m
- Boom Length: 3.55m - 10.80m
- Outrigger Extension: 4.8m
- Max. Lifting Capacity: 3,130kg x 3.7m
- Section: 5
- Max. Hook Height: 15.2m
- Max. Load Radius: 13.12m
- Boom Length: 3.77m - 13.34m
- Outrigger Extension: 4.8m
- Max. Lifting Capacity: 3,130kg x 3.7m
- Section: 6
- Max. Hook Height: 17.5m
- Max. Load Radius: 15.47m
- Boom Length: 3.85m - 15.69m
- Outrigger Extension: 4.8m
- Max. Lifting Capacity: 3,130kg x 3.5m
- Section: 6
- Max. Hook Height: 19.4m
- Max. Load Radius: 17.8m
- Boom Length: 4.69m - 18.06m
- Outrigger Extension: 4.8m
